Origlite 4.5W MR16 LED Spotlight Replaces Philips 20W Halogen MR16 Lamp

1. Features

- BridgeLUX 45Mil Chip, more than 90LM/W

- 6063 aluminium heat sink, good performance of heat dissipation

- Electroplated and polished to a deep, high polish, smooth to the touch

- PMMA cover, even distribution of light, no glare

- Smart design, 23 ventilation holes for much better heat emission

- GU5.3, MR16 Base

- 4*1W, 4PCS LEDs

2. Parameters

Item No.

OL-SL-HP-011

Life Span

2 Years

Optical

LED Chip

BridgeLUX 45 Mil Chip

LED Qnty

4PC*1W

LM

Warm White: 400LM
Daily White: 450LM

LM/W

90

LUX

　

Beam Angle

30,45,60,120

Dimmable

No

Electrical

Input V

AC85-265V

Output W

4.5

Power Factor

0.92

Colour

Colour

White

CCT(K)

2700-3200, 4000-4500, 5500-6500

Ra

75

Structural

Working Temperature

-20 ℃~ +50℃

Housing
Materials

Aluminium Heat Sink, Frosted PC Cover

Sizes (mm)

Φ50*42

NW(G)

48

GW(G)

　

Packaging

　

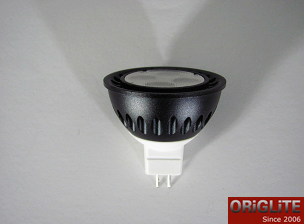

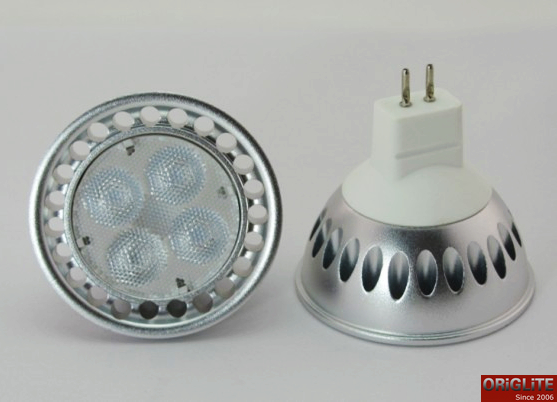

3. Pictures

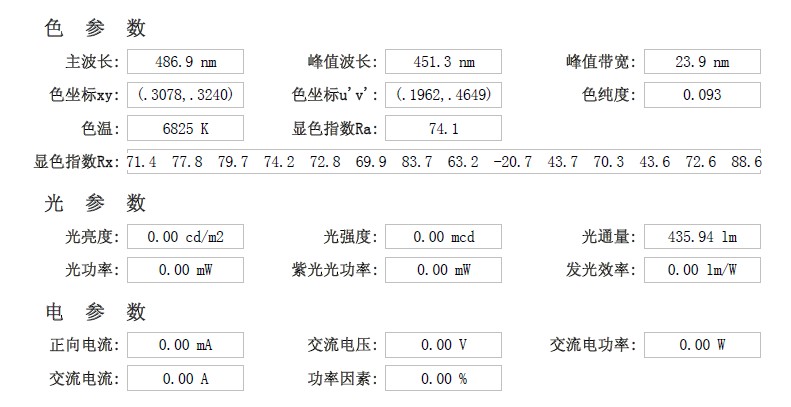

4. Lighting Test

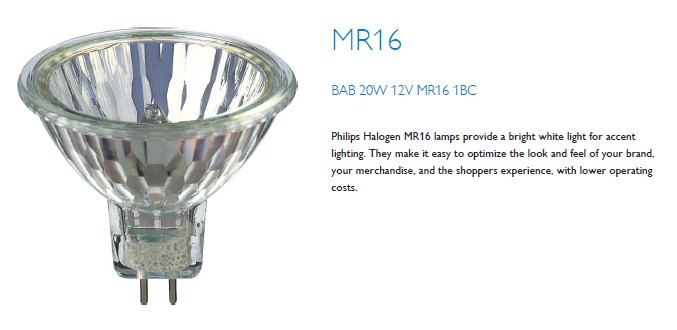

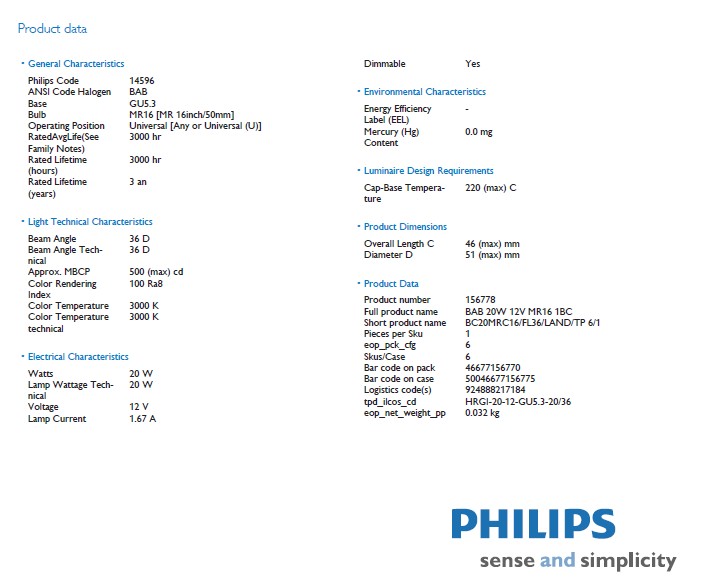

5. Philips MR16 Halogen Lamp
