1. Features

- Latest sunflower-type heat sink, vacuum phase transformation cooling system, much more better performance of heat emission

- Single isolated constant current driver, also better for heat dissipation and longer life span

- 4PCS, 5PCS, 6PCS of 100W COB LEDs, better for heat dissipation and longer life span

- BridgeLUX 45MIL LED chip, high luminous efficacy

- Meanwell high power supply, more than 3 years of quality guarantee

2. Optical, Electrical, Structural Parameters

Item No.	OL-HBL-COB-O21	OL-HBL-COB-O22	OL-HBL-COB-O23
Life Span	2 Years	2 Years	2 Years
LED Chip	BridgeLUX 45Mil	BridgeLUX 45Mil	BridgeLUX 45Mil
LED Type	4PCS*100W COB	5PC*100W COB	6PC*100W COB
LM	35000	44000	53000
LM/W	88	88	88
LUX
Beam Angle	120	120	120
Dimmable	No	No	No
Input V	AC85-265V, DC12-24V	AC85-265V, DC12-24V	AC85-265V, DC12-24V
Output W	400	500	600
Power Factor	0.96	0.96	0.96
Driver	4PCS isolated, constant current	5PCS isolated, constant current	isolated, constant current
Colour	White	White	White
CCT(K)	2700-3200 4000-4500 5500-6500	2700-3200 4000-4500 5500-6500	2700-3200 4000-4500 5500-6500
Ra	75	75	75
Working Temperature	-20 ℃~ +50℃	-20 ℃~ +50℃	-20 ℃~ +50℃
Housing Materials	Aluminium	Aluminium	Aluminium
IP Rate	IP67	IP67	IP67
Sizes (mm)	ф613*639	ф613*709	ф613*729
NW(G)
GW(G)
Packaging

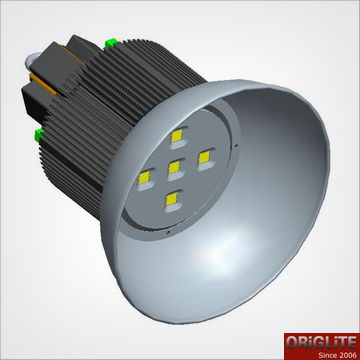

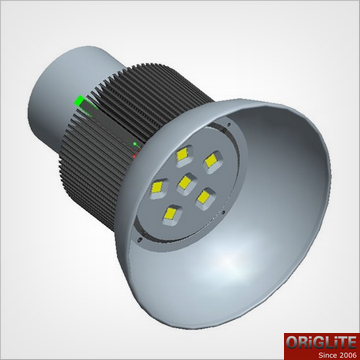

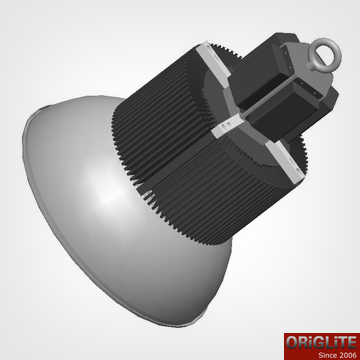

3. Pictures
