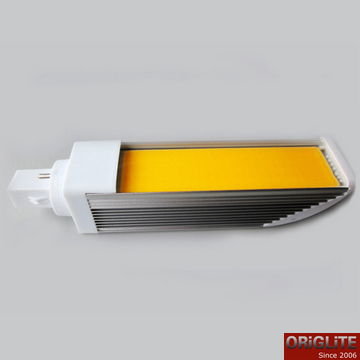

Origlite 88-90LM/W LED PLC Light, Ideal for Replacement for Philips PL-C Fluorescent Lamp
Read:6066

1. Features

- Edison chip, 88-95LM/W

- 9W, COB, 120 degrees beam angle

- 6063 aluminium heat sink, good performance of heat dissipation

- PC cover, even distribution of light, no glare

- Smart design, streamlined shape, nice looking

- G23/G24/E26/E27/B22 Base



2. Optical, Electrical, Structural Parameters

SN

Subject

Parameters

1

Input Voltage

AC85-265V

2

Output Power

9.2W

3

Power Factor

Built in isolated current driver, 0.96

4

Dimmable or not

dimmable

5

LED Type

Edison SMD LED, COB LED

6

Luminous Flux（LM）

Warm White: 800LM, Pure White: 860-900LM

7

Colour Rendering Index(Ra)

75-80

8

Colour Temerature（K）

2700-3200/4000-4500/5500-6500

9

Life Span(H)

25000

10

Beam Angle

30º, 45º, 60º,120º

11

Working Temperature

-20º--40º

12

Storage Temperature

25℃

13

Housing Materials

6063# Aluminium, PC Cover

14

Dimension(MM)

167*35

15

Weight(G)

NW: 140G; GW: 160G

16

Base

G23, G24, E26, E27, B22

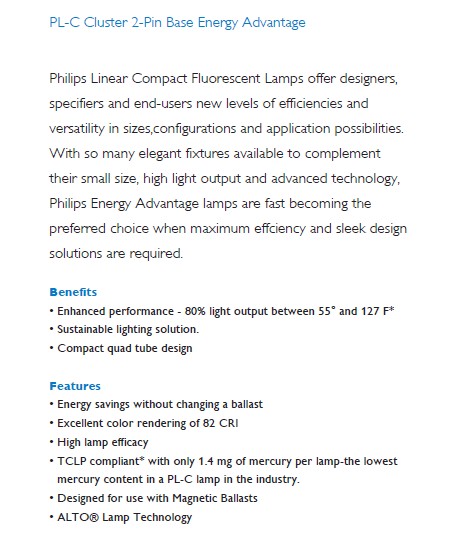

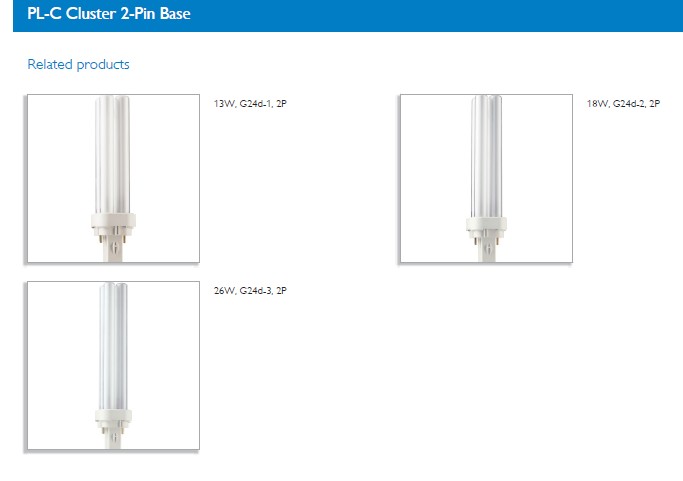

3. Replacement for Philips PL-C Fluorescent Lamp
