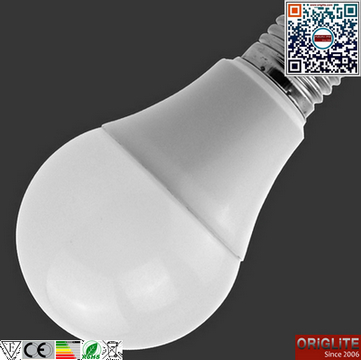

 100LM/W 3-12W LED Bulb Lamp with Built-in AL Heat Sink
型号. : OL-BL-SMD-111/112/113/114/115
介绍和应用 :
◆ Latest Developed LED Bulb Lamp ◆ SamSung LED chip,100LM/W ◆ Energy scale, A++ ◆ Uniform lighting. No dark area. Soft lighting for our eyes. No glare ◆ 330° beam angle ◆ Built-in constant current driver,CE,SAA listed ◆ Die-casting aluminum heatsink, vent holes for air flowing freely ◆ For Junction Temperature, ＜60℃±10% ( Ta= 25℃) ◆ High photopermability, more than 90%...


特性和参数 光和照度 结构和包装 安装图 下载

Item No.

OL-BL-SMD-111

OL-BL-SMD-112

OL-BL-SMD-113

OL-BL-SMD-114

OL-BL-SMD-115

Life Span

35000 hours

35000 hours

35000 hours

35000 hours

35000 hours

Quality Guarantee

3 Years

3 Years

3 Years

3 Years

3 Years

Optical

LED Chip

SamSung

SamSung

SamSung

SamSung

SamSung

LED Type

10PCS 5730

12PCS 5730

14PCS 5630

18PCS 5730

24PCS 5730

LM

270LM

450LM

630LM

810LM

1080LM

LM/W

100LM/W

100LM/W

100LM/W

100LM/W

100LM/W

LUX











Beam Angle

330°

330°

330°

330°

330°

Dimmable

No

No

No

No

No

Electrical

Input V

85-265VAC

85-265VAC

85-265VAC

85-265VAC

85-265VAC

Output W

3

5

7

9

12

Power Factor

0.94

0.94

0.94

0.94

0.94

Driver

isolated,
constant current

isolated,
constant current

isolated,
constant current

isolated,
constant current

isolated,
constant current

Certificates

FCC, CE, SAA

FCC, CE, SAA

FCC, CE, SAA

FCC, CE,SAA

FCC, CE, SAA

 Colour

Colour

White

White

White

White

White

CCT(K)

2700-3200
4000-4500
5500-6500

2700-3200
4000-4500
5500-6500

2700-3200
4000-4500
5500-6500

2700-3200
4000-4500
5500-6500

2700-3200
4000-4500
5500-6500

CRI

80 Ra

80 Ra

80 Ra

80 Ra

80 Ra

Structural

Working

Temperature

 -20 ℃~ +50℃

 -20 ℃~ +50℃

 -20 ℃~ +50℃

 -20 ℃~ +50℃

 -20 ℃~ +50℃

Housing
Materials

AL heatsink

AL heatsink

AL heatsink

AL heatsink

AL heatsink

Sizes (mm)

Φ54x116

Φ54x116

Φ60x116

Φ70x120

Φ70x120

Base

E26, E27, B22

E26, E27, B22

E26, E27, B22

E26, E27, B22

E26, E27, B22

NW(G)

15

15

20

20

30
