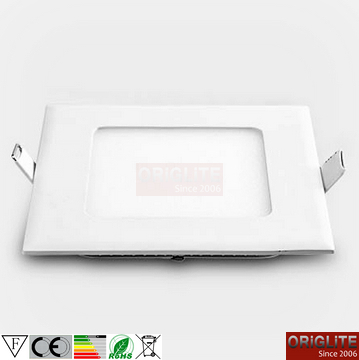

 Round and Square Slim LED Panel Light
型号. : OL-PL-SMD-R021,022,023,024,025
介绍和应用 :
◆ Raw Materials - aluminum body, die-casting aluminum. PMMA diffuser(NOT PC), excellent performance of luminous transmittance.◆ Sun Flower-Type Designed Heat Sink for Better Performance of Heat Dissipation. ◆ Spring Fastener, delicate design. ◆ Lighting Performance: lighting evenly distributed, no dark area, soft lighting, no daze, special for architechtural lighting....


特性和参数 光和照度 结构和包装 安装图 下载

Round and Square Shape, 3-25W, SamSung Chip, Slim LED Panel Light
 Item No.  Optical  Technical
LED
Type		 LM LM/W Beam
Angle		 Input
Voltage		 Output
Watt		 Driver PF CCT(K) CRI
(Ra)		 Housing
Material		 Sizes
(mm)		 Cut-out
(mm)
OL-PL-
SMD-R021		 15 PCS
SMD
LED
2835		 240 80-84 45°, 60° 85-265V AC 3W isolated,
 constant
 current,
driver 		 0.9 2700-3200
4000-4500
 5500-6000		 ≥76  AL,
PMMA
 refuser		 D85×H12 D70
OL-PL-
SMD-S022		 15 PCS
SMD
LED
2835		 240 80-84 45°, 60° 85-265V AC 3W isolated,
 constant
 current,
driver 		 0.9 2700-3200
4000-4500
 5500-6000		 ≥76  AL,
PMMA
 refuser		 L85×L85
×H12		 L70×L70
OL-PL-
SMD-R023		 20 PCS
SMD
LED
2835		 320 80-84 45°, 60° 85-265V AC 4W isolated,
 constant
 current,
driver 		 0.9 2700-3200
4000-4500
 5500-6000		 ≥76  AL,
PMMA
 refuser		 D105
×H12		 D95
OL-PL-
SMD-S024		 20 PCS
SMD
LED
2835		 400 80-84 45°, 60° 85-265V AC 5W isolated,
 constant
 current,
driver 		 0.9 2700-3200
4000-4500
 5500-6000		 ≥76  AL,
PMMA
 refuser		 L105        × L105
×H12		 L95×L95
OL-PL-
SMD-S025		 30 PCS
SMD
LED
2835		 480 80-84 45°, 60° 85-265V AC 6W isolated,
 constant
 current,
driver 		 0.9 2700-3200
4000-4500
 5500-6000		 ≥76  AL,
PMMA
 refuser		 L110       × L110
×H12		 L95×L95
OL-PL-
SMD-R026		 20 PCS
SMD
LED
2835		 480 80-84 45°, 60° 85-265V AC 6W isolated,
 constant
 current,
driver 		 0.9 2700-3200
4000-4500
 5500-6000		 ≥76  AL,
PMMA
 refuser		 D120
×H12		 D110
OL-PL-
SMD-S027		 30 PCS
SMD
LED
2835		 480 80-84 45°, 60° 85-265V AC 6W isolated,
 constant
 current,
driver 		 0.9 2700-3200
4000-4500
 5500-6000		 ≥76  AL,
PMMA
 refuser		 L120       × L120
×H12		 L110
×L110
OL-PL-
SMD-R028		 45 PCS
SMD
LED
2835		 720 80-84 45°, 60° 85-265V AC 9W isolated,
 constant
 current,
driver 		 0.9 2700-3200
4000-4500
 5500-6000		 ≥76  AL,
PMMA
 refuser		 D145
×H12		 D135
OL-PL-
SMD-S029		 30 PCS
SMD
LED
2835		 720 80-84 45°, 60° 85-265V AC 9W isolated,
 constant
 current,
driver 		 0.9 2700-3200
4000-4500
 5500-6000		 ≥76  AL,
PMMA
 refuser		 L145       × L145
×H12		 L135
×L135
OL-PL-
SMD-R0210		 55 PCS
SMD
LED
2835		 880 80-84 45°, 60° 85-265V AC 11W isolated,
 constant
 current,
driver 		 0.9 2700-3200
4000-4500
 5500-6000		 ≥76  AL,
PMMA
 refuser		 D175
×H12		 D165
OL-PL-
SMD-S0211		 55 PCS
SMD
LED
2835		 880 80-84 45°, 60° 85-265V AC 11W isolated,
 constant
 current,
driver 		 0.9 2700-3200
4000-4500
 5500-6000		 ≥76  AL,
PMMA
 refuser		 L175       × L175
×H12		 L165
×L165
