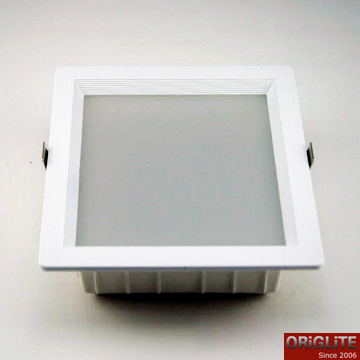

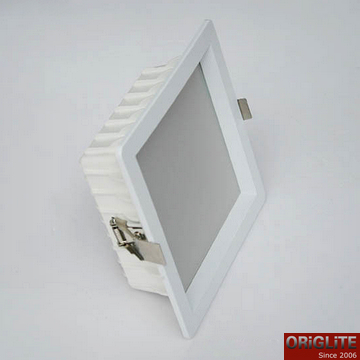

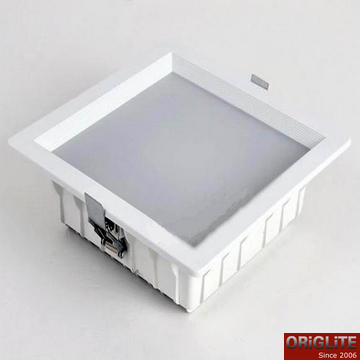

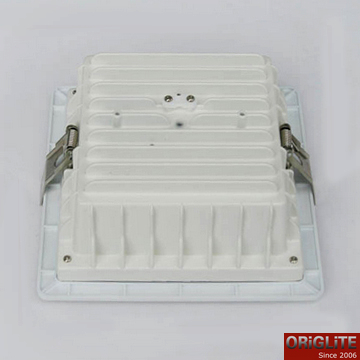

	Square LED Down Light 型号. : OL-DL-SMD-021,022,023 介绍和应用 : Square LED Down Light...

特性和参数

光和照度

结构和包装

安装图

下载

Item No.		OL-DL-SMD-021	OL-DL-SMD-022	OL-DL-SMD-023
Life Span(Hours)		35000	35000	35000
Optical	LED Chip	SamSung	SamSung	SamSung
	LED Type	SMD3020, 24PCS	SMD3020, 40PCS	SMD3020, 56PCS
	LM	960	1600	2240
	LM/W	80	80	80
	LUX
	Beam Angle	30, 45, 60	30, 45, 60	30, 45, 60
	Dimmable	No	No	No
Electrical	Input V	AC85-265V	AC85-265V	AC85-265V
	Output W	12.5	20.6	28.6
	Power Factor	0.92	0.92	0.96
	Driver	isolated constant driver	isolated constant driver	isolated constant driver
Colour	Colour	White	White	White
	CCT(K)	2700-3200 4000-4500 5500-6500	2700-3200 4000-4500 5500-6500	2700-3200 4000-4500 5500-6500
	Ra	75	75	75
Structural	Working Temperature	-20 ℃~ +50℃	-20 ℃~ +50℃	-20 ℃~ +50℃
	Housing Materials	die-casting aluminium PMMA cover	die-casting aluminium PMMA cover	die-casting aluminium PMMA cover
	Sizes (mm)	14014057	18018067	22022067
	Cut-out Size	125*125	160*160	195*195
	NW(G)
	GW(G)
	Packaging
