Product >> Architectural Office Light >>10-500W LED Floodlight >>

Large image

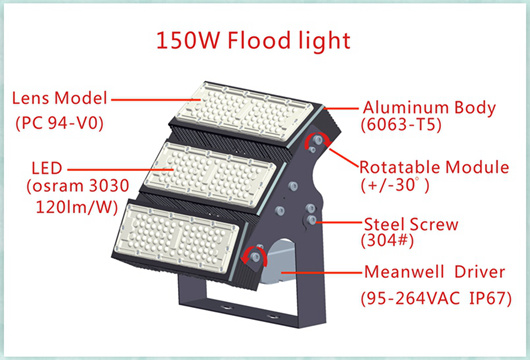

130lm/w New LED Floodlight of Module Type(ROTATABLE)
Model No. :OR-FLSMDB50W,100W,150W,200W,300W,400W,500W,600W
Rated Power :  50W,150W,200W,300W,400W,500W,600W
Input Voltage :  90-277VAC
Luminous Flux :  130lm/W(Phlips,Osram chip)
CRI :  80Ra
Sizes :
Introduction&Application :


Features & Parameters Light & Illuminance Structural & Packaging Installation Drawing



1. Power Supply
â—† 150,000 Hour electrolytic driver IC
â—† Constant current power supply, 85-277VAC, water proof, IP68, PF0.98, 88% efficiency
â—† Electritic design of anti-statics, anti-overvoltage of 4000VAC, anti-thunderstrike, anti-surge
â—† IP67 connector of electrical wire. brown wire: live, blue wire: neutral, green wire: earth

2. Optoelectricity
â—† SMD LED3030, 130lm/w(lumen of Philip, OsramLED chip)
â—† 130lm/w for floodlight
â—† 80% Lumen maintenance after 60,000 hours
â—† SMD LEDs3030 not completely arrayed in the middle area to avoid heat accumulation
â—† 60°, 90°, 80°×120°, 90°×150°  beam angle

3. Aluminum Heat Sink & Heat Dissipation
â—† Die-casting aluminum(6063-T5), electroplated and polised to a deep, high polish                                                                                           â—† Rotatable heat sinks, angle of + / - 30
â—† Module design for high performance of heat dissipation
â—† Alluminum straight fins heat sink designed to increase its surface area. 34pcs of heat sink fins designed. More air bypasses the fins
â—† The power supply is 2mm-distance from heat sink, to avoid heat result from the power and the heat sink to dispate to each other
â—† IP67 rated, class â… ,  avaiable to withdraw dust and moisture
â—† Rugged and durable
â—† Two aluminum panels applied to fix the aluminum straight fins of heat sink

50-600W LED Floodlight of New Module Type
(Meanwell / Sosen Powered, Philips Chip LED, Die-Casting Aluminum Heat Sink, 50000 Hour Life Span, 3-year warranty)
Item No. Input
Voltage		 Rating  Power
(±10%)		 LED Qty
(PCS)		 Power  Factor LM  Flux  (LM) Lumen
Efficacy
(LM/W)		 Illumination
(Lux)		 CRI  (Ra) Sizes
(mm)		 N.W.
(G)
at 5m at 10m at 15m at 20m
OR-FLSMDB 50W  85-277VAC 50W SMD 2014  0.6w, 78 0.92 6500 130LM/W 69.41 17.35 7.72 4.34 ≥80

251x 138x88

 1300
OR-FLSMDB 100W  85-277VAC 100W SMD 2014  0.6w, 156 0.92 13000 130LM/W 109.9 27.48 12.21 6.87 ≥80 251x 184x88 2020
OR-FLSMDB 150W  85-277VAC 150W SMD 2014  0.6w, 234 0.92 19500 130LM/W 142.5 35.63 15.84 8.91 ≥80 251x 270x88 2700
OR-FLSMDB 200W  85-277VAC 200W SMD 2014  0.6w, 312 0.92 26000 130LM/W 212 53.01 23.56 13.25 ≥80 251x 330x88 3860
OR-FLSMDB300W  85-277VAC 300W SMD 2014  0.6w, 468 0.92 39000 130LM/W 285 71.26 31.68 17.82 ≥80 505x 270x88 5402
OR-FLSMDB 400W  85-277VAC 400W SMD 2014  0.6w, 624 0.92 52000 130LM/W 414 106.02 47.12 26.5 ≥80 505x 330x88 5485
OR-FLSMDB 500W  85-277VAC 500W SMD 2014  0.6w, 780 0.92 65000 130LM/W 549.5 137.4 61.05 34.35 ≥80 505x 420x88 5564
