Product >> Architectural Office Light >>3-18W LED Spotlight >>

Large image

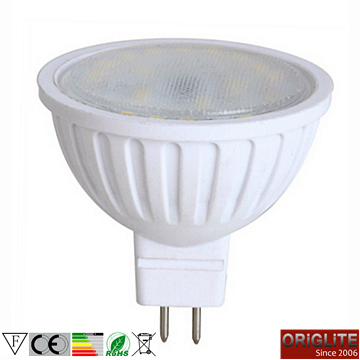

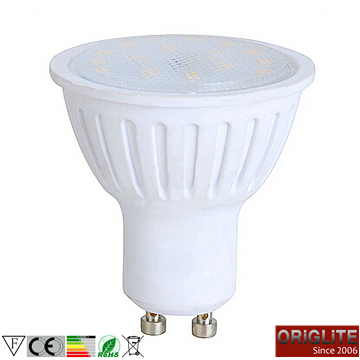

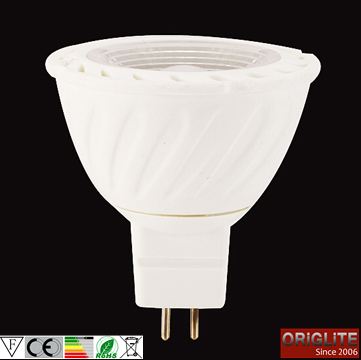

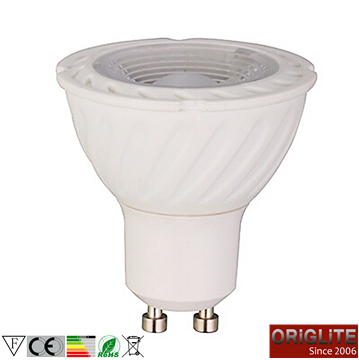

New COB And SMD LED Spotlight
Model No. :OL-SL-COB-191,192
Rated Power :
Input Voltage :
Luminous Flux :
CRI :
Sizes :
Introduction&Application :
- To increase spotlight performance and functionality - COB LED, SMD LED - High luminous efficacy, 90LM/W - Optical lens of 30掳, 60掳beam angle makes lighting more condensed and straight - Lustrous built-in aluminium light body, electroplated to a deep and high polish - No glare. Good performance of heat emission - 30, 45, 60 degrees beam angle - 4W, 5W - MR16, E27, GU10 bases


Features & Parameters Light & Illuminance Structural & Packaging Installation Drawing

4W, 5W COB LED, SMD LED Spotlight

Item No. Power(W) Voltage(VAC) Lumen CCT Beam Angle Rated Life(Hrs) Sizes
OL-SL-COB-191 4W  12V, 85-265 320 2700K,4000K,6000K 30掳, 60掳 35,000 D50脳H53, D50脳H55
OL-SL-COB-192 5W  12V, 85-265 450 2700K,4000K,6000K 30掳, 60掳 35,000 D50脳H53, D50脳H55
