Product >> Architectural Office Light >>3-80W LED Down Light >>

Large image

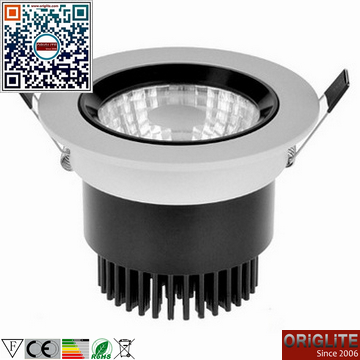

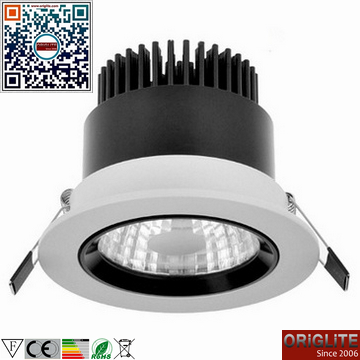

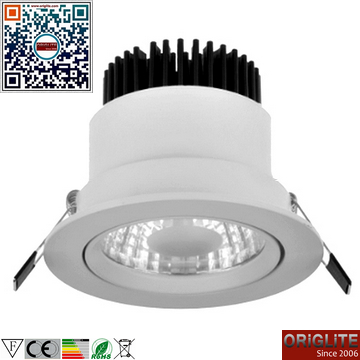

Smart COB LED Down Light
Model No. :OL-DL-SMD-071,072,073,074,075,076,077,078
Rated Power :
Input Voltage :
Luminous Flux :
CRI :
Sizes :
Introduction&Application :

Features & Parameters

Light & Illuminance

Structural & Packaging

Installation Drawing

3-30W SMD LED/COB LED Down Light

Item No.	Power(W)	Voltage(VAC)	Lumen	CCT	Beam Angle	Out Sizes(mm)	Cut-out(mm)
OL-DL-SMD-071	3W	85-265	255	2700K,4000K,6000K	45°, 60°	D100×H45	D70
OL-DL-SMD-072	6W	85-265	510	2700K,4000K,6000K	45°, 60°	D100×H45	D70
OL-DL-SMD-073	8W	85-265	680	2700K,4000K,6000K	45°, 60°	D110×H45	D75
OL-DL-SMD-074	12W	85-265	1020	2700K,4000K,6000K	45°, 60°	D145×H65	D100
OL-DL-SMD-075	15W	85-265	1275	2700K,4000K,6000K	45°, 60°	D185×H65	D155
OL-DL-SMD-076	20W	85-265	1700	2700K,4000K,6000K	45°, 60°	D195×H65	D165
OL-DL-SMD-077	25W	85-265	2120	2700K,4000K,6000K	45°, 60°	D235×H70	D210
OL-DL-SMD-078	30W	85-265	2550	2700K,4000K,6000K	45°, 60°	D235×H70	D210
