Product >> Architectural Office Light >>3-80W LED Down Light >>

Large image

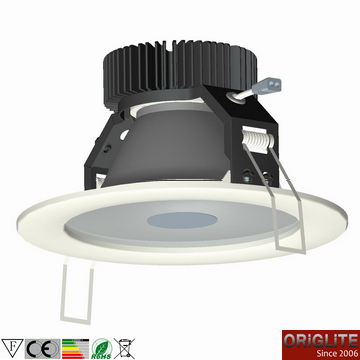

New Type of Smart COB LED Down Light
Model No. :OL-DLC015W,9W,12W,15W,18W,22W,25W
Rated Power :	5W,9W,12W,15W,18W,20W,22W,25W
Input Voltage :	85-265VAC
Luminous Flux :	100lm/w
CRI :	>80 Ra
Sizes :
Introduction&Application : ◆ New design of multi-mirror reflector of trumpet type; ◆ More soft lighting and fashionable; ◆ Sun-flower type of die-casting aluminum heat sink, designed to increase its surface area. More air bypasses the sun-flower. Much better performance of heat dissipation

Features & Parameters

Light & Illuminance

Structural & Packaging

Installation Drawing

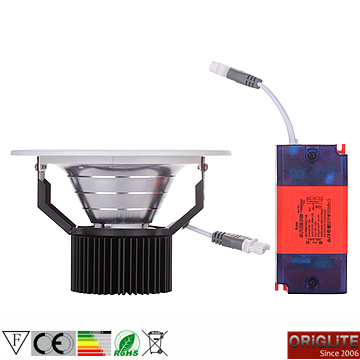

New COB LED Down Light

  new design of  multi-mirror reflector of trumpet type, more soft lighting and fashionable; sun-flower type of die-casting aluminum heat sink, much better performance of heat dissipation

Specifications

SN

Item        No.

Input   V(AC)

Rating Power

PF

Lumen

LM/W

Beam Angle

CRI (Ra)

Color Temp   (K)

Sizes
(mm)

Cut-out Size
(mm)

Housing Material

Life Span
(H),   War-ranty

Dimm-ing

1

OL-DLC01 5W

85-265VAC

5W

0.8

500LM

100LM/W

15°
24°
60°

80 Ra

2700- 3200
4000- 4500
6000- 6500

D110× H60mm

95

AL heatsink,
frosted cover

35000 Hour

3-year
war-ranty

No

2

OL-DLC01 9W

9W

900LM

3

OL-DLC01 12W

85-265VAC

12W

1200LM

100LM/W

15°
24°
60°

80 Ra

2700- 3200
4000- 4500
6000- 6500

D140× H90mm

125

AL heatsink,
frosted cover

35000 Hour

3-year
war-ranty

No

4

OL-DLC01 15W

15W

0.9

1500LM

5

OL-DLC01 18W

85-265VAC

18W

1800LM

100LM/W

15°
24°
60°

80 Ra

2700- 3200
4000- 4500
6000- 6500

D195× H106mm

165

AL heatsink,
frosted cover

35000 Hour

3-year
war-ranty

No

6

OL-DLC0 20W

20W

2000LM

7

OL-DLC01 22W

85-265VAC

22W

2200LM

100LM/W

15°
24°
60°

80 Ra

2700- 3200
4000- 4500
6000- 6500

AL heatsink,
frosted cover

35000 Hour

3-year
war-ranty

No

8 OL-DLC01 25W 25W 2500LM
