Product >> Architectural Office Light >>3-20W LED Bulb Lamp >>

Large image

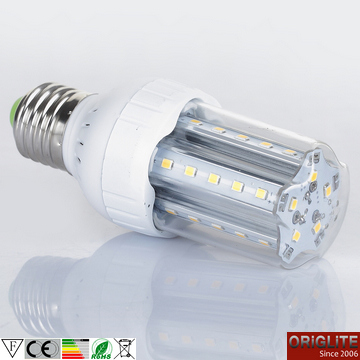

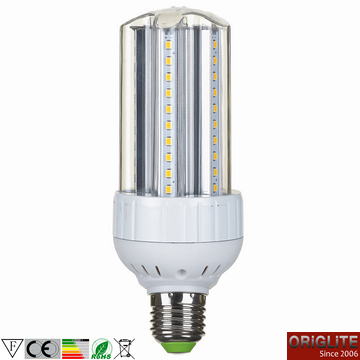

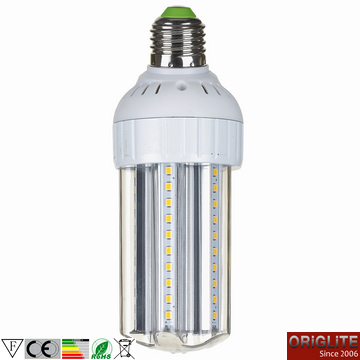

5-15W 100LM/W LED Corn Bulb Lamp(LIFUD Branded Driver)
Model No. :OL-CDL-SMD-091,092,093,094,095,096
Rated Power :
Input Voltage :
Luminous Flux :
CRI :
Sizes :
Introduction&Application : ◆New type; ◆100LM/W; ◆SamSung chip; ◆LIFUD branded constant current driver; ◆Rubby branded capacitor and other element components originally from Japan; ◆330°beam angle; ◆Vent holes, clear and frosted plastic cover ◆dimmable, non-dimmable, dimming range from 100%-5% ◆Replacement of Philips, Osram incandescent bulb, PLC lamp, and more ideal applications

Features & Parameters

Light & Illuminance

Structural & Packaging

Installation Drawing

Latest SamSung Chip LED Corn Lamp

Technical Parameters

Technical Parameters

Item No.

OL-CDL-SMD-091

Item No.

OL-CDL-SMD-092

LED

SMD LED 30PCS

LED

SMD LED 30PCS

Watt

5W

Watt

6W

Lumen

500LM

Lumen

540-570LM

Sizes

118mm*Φ48mm

Sizes

118mm*Φ48mm

Weight

98g

Weight

100g

PF

0.9

PF

0.9

Item No.

OL-CDL-SMD-093

Item No.

OL-CDL-SMD-094

LED

SMD LED48PCS

LED

SMD LED60PCS

Watt

8W

Watt

10W

Lumen

800LM

Lumen

900-950LM

Sizes

132mm*Φ48mm

Sizes

158mm*Φ60mm

Weight

112g

Weight

168g

PF

0.9

PF

0.9

Item No.

OL-CDL-SMD-095

Item No.

OL-CDL-SMD-096

LED

SMD LED72PCS

LED

SMD LED72PCS

Watt

12W

Watt

14W

Lumen

1200LM

Lumen

1260-1330LM

Sizes

175mm*Φ60mm

Sizes

175mm*Φ60mm

Weight

188g

Weight

192g

PF

0.9

PF

0.9
