Product >> Architectural Office Light >>3-18W LED Spotlight >>

Large image

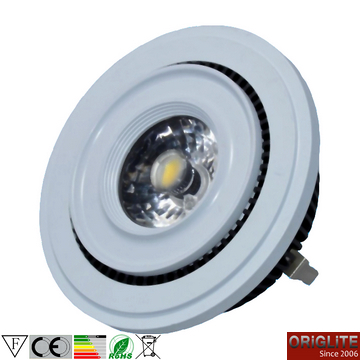

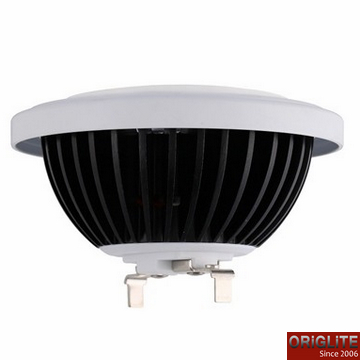

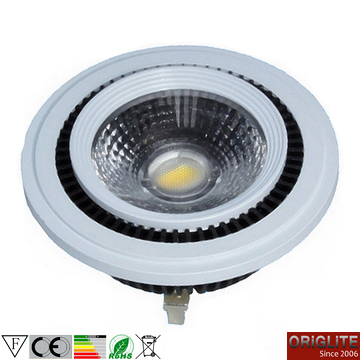

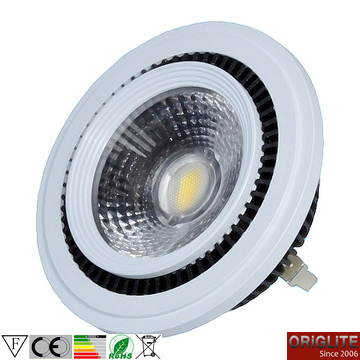

BridgeLUX Chip 6W,10W,12W,15W LED AR111 Spotlight
Model No. :OL-SLAR111-COB-051,052,053,054,055
Rated Power :  6W, 8W, 10W, 15W
Input Voltage :  85-245VAC
Luminous Flux :
CRI :
Sizes :
Introduction&Application :
◆ To deliver a warm, LED-like accent beam, Origlite’s LED AR111 spotlight is an ideal retrofit solution for spot and general lighting applications in the hospitality and retail industry. ◆ To be suitable for general lighting where the light is on all the time, such as creative accent lighting applications in shops, restaurants, hotels, and especially for galleries, exhibitions and museums.◆ The robustly designed BridgeLUX Chip by Origlite AR111 offers various beam angles for a clearly defined beam spread. ◆ There is no UV or IR in the beam, making it suitable for illuminating heat-sensitive objects (food, organic materials, paintings, etc.). ◆ The isolated, constant current driver enables broad compatibility with existing electromagnetic and electronic transformers. ◆ To deliver huge energy savings and minimize maintenance cost without any reduction in brightness.


Features & Parameters Light & Illuminance Structural & Packaging Installation Drawing
Item No. OL-SLAR111
-COB-051		 OL-SLAR111
-COB-052		 OL-SLAR111
-COB-053		 OL-SLAR111
-COB-054		 OL-SLAR111
-COB-055
Life Span 3 Years 3 Years 3 Years 3 Years 3 Years
Guarantee 35000 hours 35000 hours 35000 hours 35000 hours 35000 hours
LED Chip BridgeLUX  BridgeLUX  BridgeLUX  BridgeLUX  BridgeLUX
LED Qnty 1PC*6W 1PC*8W 1PC*10W COB 1PC*10W COB 1PC*15W COB
LM 600 800 1000 1000 1500
LM/W 100 100 100 100 100
LUX
Beam Angle(°) 30°, 45°, 60° 30°, 45°, 60° 30°, 45°, 60° 24°, 40° 24°, 40°
Dimmable No No No No No
Input V AC85-245V
 AC & DC12V		 AC85-245V
 AC & DC12V		 AC85-245V
 AC & DC12V		 AC85-245V
 AC & DC12V		 AC85-245V
 AC & DC12V
Output W 6 8 10 12 15
Power Factor 0.92 0.92 0.92 0.92 0.92
Colour White White White White White
CCT(K) 2700-6500 2700-6500 2700-6500 2700-6500 2700-6500
Ra 80 80 80 80 80
Working
Temperature		  -20 â„ƒ~ +50℃  -20 â„ƒ~ +50℃  -20 â„ƒ~ +50℃  -20 â„ƒ~ +50℃  -20 â„ƒ~ +50℃
Housing
Materials		 die-casing aluminium  die-casting aluminium  die-casting aluminium  die-casting aluminium die-casting aluminium
Sizes (mm) Φ111*65 Φ111*65 Φ111*65 Φ111*65 Φ111*65
NW(G)
