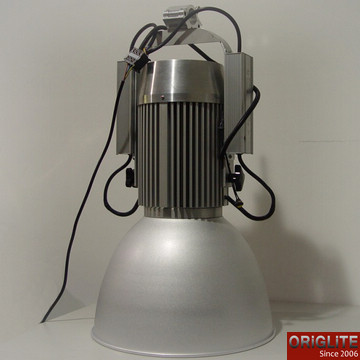

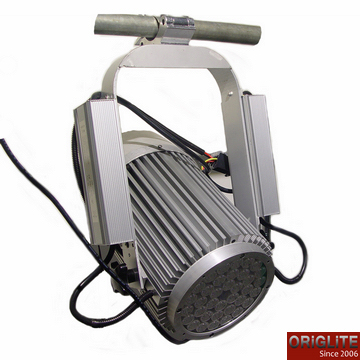

| COB LED High Bay Light,Liquid Cooling Heatsink,Two Powers |
| Model No. :OL-HBL-COB-031,032,033 |
| Rated Power : |
|
| Input Voltage : |
|
| Luminous Flux : |
|
| CRI : |
|
| Sizes : |
|
Introduction&Application :
â—† CREE LED chip
â—† COB LED High Bay Light
â—† Heat Sink in Vacuum Phase Transition Tech, fluidd cooling solution, much better performance of heat emission /
Vacuum Phase Transition Technology, two-phase heat transfer involves the liquid-vapor phase change (boiling/evaporation and condensation) of a working fluid. While solid conductors such as aluminum, copper, graphite and diamond have thermal conductivities. Heat is transferred from the heat source (evaporator) to the heat sink (condenser) over relatively long distances through the latent heat of vaporization of a working fluid, namely, absorbed by vaporizing the working fluid. The thermal system has 3 major components: a vacuum tight, sealed containment shell or vessel, working fluid, capillary wick structure. They all work together to transfer heat more efficiently and evenly. Since the heat pipe contains a vacuum, the working fluid will boil and take up latent heat at well below its boiling point at atmospheric pressure. Water, for instance, will boil at just above 273° K (0°C) and start to effectively transfer latent heat at this low temperature. |
 |
 |
|
 |
| |
 |
Features & Parameters |
 |
Light & Illuminance |
|
Structural & Packaging |
|
Installation Drawing |
|
 |
|
|
Item No. |
OL-HBL-COB-031 |
OL-HBL-COB-032 |
OL-HBL-COB-033 |
|
Life Span |
35000 Hours |
35000 Hours |
35000 Hours |
|
Warranty |
3 Year |
3 Year |
3 Year |
|
Optical |
LED Chip |
CREE XM-L |
CREE XM-L |
CREE XM-L |
|
LED Type |
SMD LED |
SMD LED |
SMD LED |
|
LM |
33000 |
3960 |
44000 |
|
LM/W |
110 |
110 |
110 |
|
LUX |
|
|
|
|
Beam Angle |
45° |
45° |
45° |
|
Dimmable |
No |
No |
No |
|
Electrical |
Input V |
85-265VAC |
AC85-265VAC |
AC85-265VAC |
|
Output W |
300W |
360W |
400W |
|
Power Factor |
0.96 |
0.96 |
0.96 |
|
Power |
exterior, isolated, constant current power |
|
Colour |
Colour |
White |
White |
White |
|
CCT(K) |
2700-3200,4000-4500
5500-6500 |
2700-3200,4000-4500
5500-6500 |
2700-3200,4000-4500
5500-6500 |
|
Ra |
78 |
78 |
78 |
|
Structural |
Working Temperature |
-20 ℃~ +50℃ |
-20 ℃~ +50℃ |
-20 ℃~ +50℃ |
|
Housing Materials |
die casting aluminium |
die casting aluminium |
die casting aluminium |
|
Heat Sink |
Vacuum Phase Transition Technology,Liquid Cooling, Better for Heat Dissipation |
|
IP Rate |
IP20 |
IP20 |
IP20 |
|
Sizes (mm) |
D420mm×H710mm |
D420mm×H710mm |
D420mm×H710mm |
|
NW(G) |
6000 |
6500 |
7000 |
|
GW(G) |
|
|
|
|
Packaging |
|
|
| |
 |
|
|
