Product >> Architectural Office Light >>10-500W LED Floodlight >>

Large image

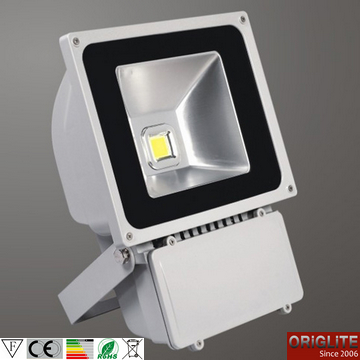

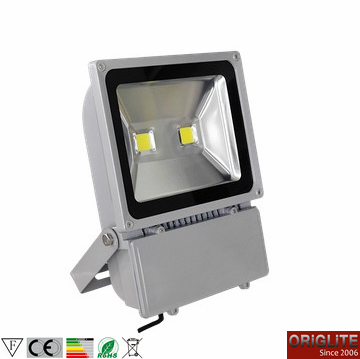

BridgeLUX Chip COB LED Floodlight
Model No. :OL-FL-COB-016,017,018,019,0110
Rated Power :	60W,70W,80W,90W,100W
Input Voltage :	85-265VAC
Luminous Flux :	100lm/w
CRI :	>80Ra
Sizes :
Introduction&Application : ◆ BridgeLUX Chip COB LED Floodlight ◆ 100LM/W ◆ Die-casting aluminum heat sink ◆ Black,silver colour light body

Features & Parameters

Light & Illuminance

Structural & Packaging

Installation Drawing

Item No.	OL-FL-COB-016	OL-FL-COB-017	OL-FL-COB-018	OL-FL-COB-019	OL-FL-COB-0110
Life Span	35000 H	35000 H	35000 H	35000 H	35000 H
Gurantee	3 Years	3 Years	3 Years	3 Years	3 Years
LED Chip	BridgeLUX	BridgeLUX	BridgeLUX	BridgeLUX	BridgeLUX
LED Type	COB	COB	COB	COB	COB
Lumen Output	6000	7000	8000	9000	10000
LM/W	100	100	100	100	100
LUX
Beam Angle	30, 45, 60,90,120	30, 45, 60,90,120	30, 45, 60,90,120	30, 45, 60,90,120	30, 45, 60,90,120
Dimmable	No	No	No	No	No
Input V	AC85-265V	AC85-265V	AC85-265V	AC85-265V	AC85-265V
Output W	60	70	80	90	100
Power Factor	0.96	0.96	0.96	0.96	0.96
Driver	isolated, constant current	isolated, constant current	isolated, constant current	isolated, constant current	isolated, constant current
Colour	White	White	White	White	White
CCT(K)	2700-3200 4000-4500 5500-6500	2700-3200 4000-4500 5500-6500	2700-3200 4000-4500 5500-6500	2700-3200 4000-4500 5500-6500	2700-3200 4000-4500 5500-6500
Ra	80	80	80	80	80
Working Temperature	-20 ℃~ +50℃	-20 ℃~ +50℃	-20 ℃~ +50℃	-20 ℃~ +50℃	-20 ℃~ +50℃
Housing Materials	Die-Cast Aluminium	Die-Cast Aluminium	Die-Cast Aluminium	Die-Cast Aluminium	Die-Cast Aluminium
Sizes (mm)	67.539.531.5	67.539.531.5	67.539.531.5	67.539.531.5	67.539.531.5
Cable Length (mm)	60	60	60	60	60
NW(G)
GW(G)
Packaging
