Product >> Architectural Office Light >>10-500W LED Floodlight >>

Large image

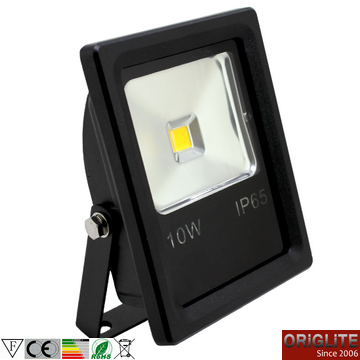

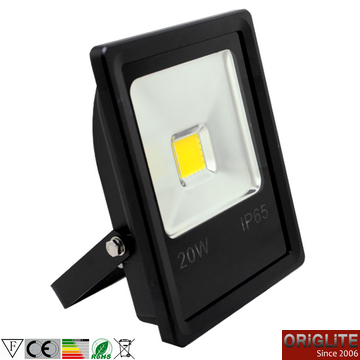

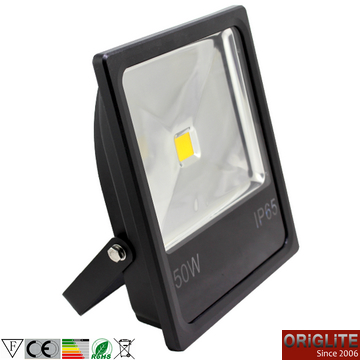

BridgeLUX Chip COB LED Floodlight
Model No. :OL-FL-HPCOB-011,012,013,014
Rated Power :	10W, 20W, 30W, 40W, 50W
Input Voltage :	85-265VAC
Luminous Flux :	100lm/w
CRI :	80 Ra
Sizes :
Introduction&Application : - BridgeLUX Chip - COB LED - Die-casting aluminum heat sink - Light body of black,silver colour - For lighting of tunnel,football field,basketball court,etc

Features & Parameters

Light & Illuminance

Structural & Packaging

Installation Drawing

Item No.		OL-FL-HPCOB-011	OL-FL-HPCOB-012	OL-FL-HPCOB-012	OL-FL-HPCOB-014
Life Span		35000 H	35000 H	35000 H	35000 H
Warranty		3 Years	3 Years	3 Years	3 Years
Optical	LED Chip	BridgeLUX	BridgeLUX	BridgeLUX	BridgeLUX
	LED Type	COB	COB	COB	COB
	LM	1000	2000	3000	5000
	LM/W	100	100	100	100
	LUX
	Beam Angle	30, 45, 60,90,120	30, 45, 60,90,120	30, 45, 60,90,120	30, 45, 60,90,120
	Dimmable	No	No	No	No
Electrical	Input V	AC85-265V	AC85-265V	AC85-265V	AC85-265V
	Output W	10	20	30	50
	Power Factor	0.96	0.96	0.96	0.96
	Driver	isolated, constant current	isolated, constant current	isolated, constant current	isolated, constant current
Colour	Colour	White	White	White	White
	CCT(K)	2700-3200 4000-4500 5500-6500	2700-3200 4000-4500 5500-6500	2700-3200 4000-4500 5500-6500	2700-3200 4000-4500 5500-6500
	Ra	80	80	80	80
Structural	Working Temperature	-20 ℃~ +50℃	-20 ℃~ +50℃	-20 ℃~ +50℃	-20 ℃~ +50℃
	Housing Materials	die-casting aluminium	die-casting aluminium	die-casting aluminium	die-casting aluminium
	Sizes (mm)	33033080	59328593	780360110	920360110MM
	Cut-out(mm)
	NW(G)
	GW(G)
	Packaging
