Item No.	OL-PL-SMD-011	OL-PL-SMD-012	OL-PL-SMD-013	OL-PL-SMD-014	OL-PL-SMD-015	OL-PL-SMD-016	OL-PL-SMD-017
Life Span	35000 h	35000 h	35000 h	35000 h	35000 h	35000 h	2 Years
LED Chip	SamSung	SamSung	SamSung	SamSung	SamSung	SamSung	SamSung
LED Type	SMD	SMD	SMD	SMD	SMD	SMD	SMD
LM	390	468	546	585	624	700	780
LM/W	78	78	78	78	78	78	78
LUX	　	　	　	　	　	　	　
Beam Angle	30,45,60,120	30,45,60,120	30,45,60,120	30,45,60,120	30,45,60,120	30,45,60,120	30,45,60,120
Dimmable	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Input V	DC24V	DC24V	DC24V	DC24V	DC24V	DC24V	DC24V
Output W	5	6	7	7.5	8	9	10
Power Factor	0.92	0.92	0.92	0.92	0.92	0.92	0.92
Colour	White	White	White	White	White	White	White
CCT(K)	2700-3200 4000-4500 5500-6500	2700-3200 4000-4500 5500-6500	2700-3200 4000-4500 5500-6500	2700-3200 4000-4500 5500-6500	2700-3200 4000-4500 5500-6500	2700-3200 4000-4500 5500-6500	2700-3200 4000-4500 5500-6500
Ra	75	75	75	75	75	75	75
Working Temperature	-20 ℃~ +50℃	-20 ℃~ +50℃	-20 ℃~ +50℃	-20 ℃~ +50℃	-20 ℃~ +50℃	-20 ℃~ +50℃	-20 ℃~ +50℃
Housing Materials	Aluminium	Aluminium	Aluminium	Aluminium	Aluminium	Aluminium	Aluminium

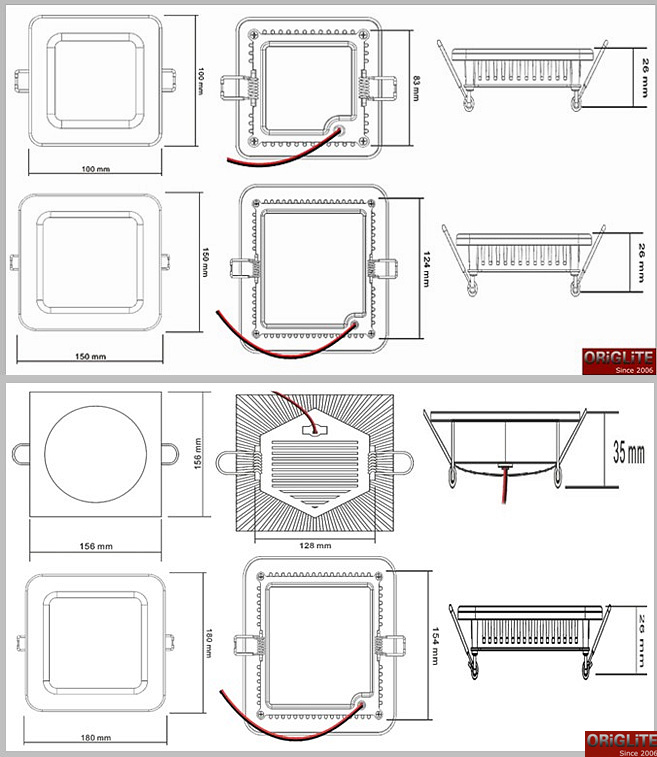

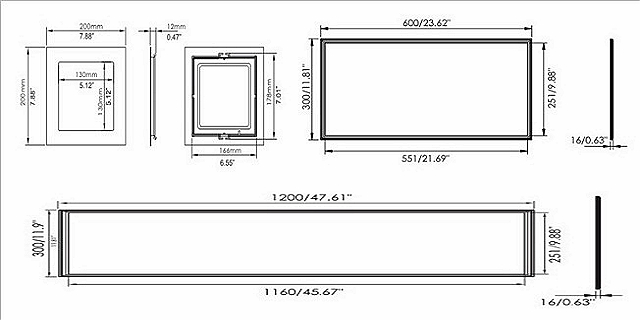

Sizes (mm)	Ø 95mm*2.6, 95*95	Φ140*2.6	L210*W117*H3.5	Φ156*2.6	L156*L156*2.6	Φ170*2.6 L156*W156*3.5	L180*L180*2.6 Φ200*2.6
NW(G)	　	　	　	　	　	　	　
GW(G)	　	　	　	　	　	　	　
Packaging
