Product >> Architectural Office Light >>3-80W LED Down Light >>

Large image

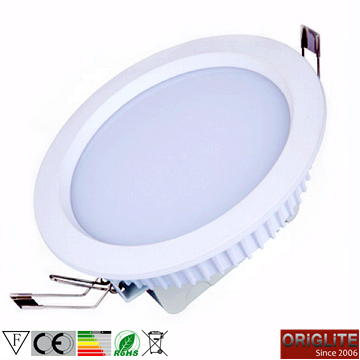

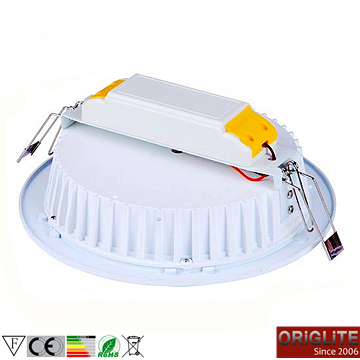

Ultra-Thin Elegant Design SMD LED Down Light
Model No. :OL-DL-SMD-011,012,013,014,015,016
Rated Power :
Input Voltage :
Luminous Flux :
CRI :
Sizes :

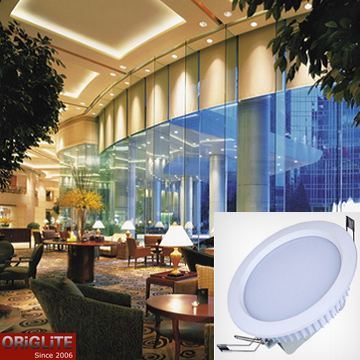

Introduction&Application : ◆ Ultra-thin die-casting aluminum heat sink designed ◆ PMMA lighting panel for an anti-glare optical design. To create comfortable and inviting illuminating environment ◆ Even distribution of lighting. No dark area ◆ Elegant light body, electroplated and polished to a deep, high polish, smooth to the touch and significantly more lustrous

Features & Parameters

Light & Illuminance

Structural & Packaging

Installation Drawing

Item No.

OL-DL-SMD-11

OL-DL-SMD-12

OL-DL-SMD-13

OL-DL-SMD-14

OL-DL-SMD-15

OL-DL-SMD-16

Life Span

35000 H

35000 H

35000 H

35000 H

35000 H

35000 H

LED Chip

LED Type

SMD

SMD

SMD

SMD

SMD

SMD

LM

680

850

1000

1275

1700

　2500

LM/W

85

85

85

85

85

85

LUX

　

　

　

　

　

　

Beam Angle

30,45,60,120

30,45,60,120

30,45,60,120

30,45,60,120

30,45,60,120

30,45,60,120

Dimmable

Yes

Yes

Yes

Yes

Yes

Yes

Input V

AC85-265V

AC85-265V

AC85-265V

AC85-265V

AC85-265V

AC85-265V

Output W

8

10

12

15

20

30

Power Factor

0.92

0.92

0.92

0.92

0.92

0.92

Colour

White

White

White

White

White

White

CCT(K)

2700-3200
4000-4500
5500-6500

2700-3200
4000-4500
5500-6500

2700-3200
4000-4500
5500-6500

2700-3200
4000-4500
5500-6500

2700-3200
4000-4500
5500-6500

2700-3200
4000-4500
5500-6500

Ra

75

75

75

75

75

75

Working Temperature

-20 ℃~ +50℃

-20 ℃~ +50℃

-20 ℃~ +50℃

-20 ℃~ +50℃

-20 ℃~ +50℃

-20 ℃~ +50℃

Housing
Materials

Aluminium

Aluminium

Aluminium

Aluminium

Aluminium

Aluminium

Sizes (mm)

Φ106*45

Φ147*55

Φ180*55

Φ195*55

Φ245*65

Φ245*65

NW(G)

340

630

790

900

1400

1400

GW(G)

　

　

　

　

　

　

Packaging

　

　

　

　

　

　
