Product >> Architectural Office Light >>3-80W LED Down Light >>

Large image

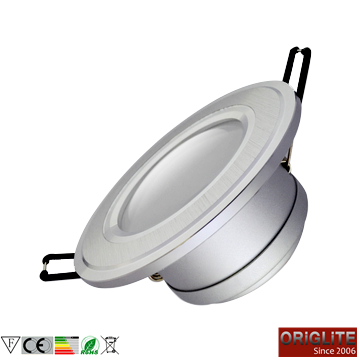

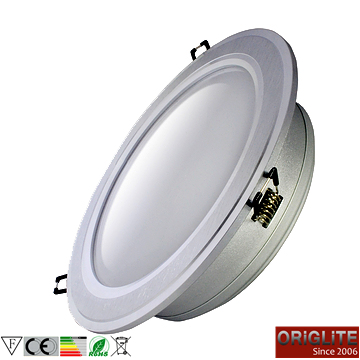

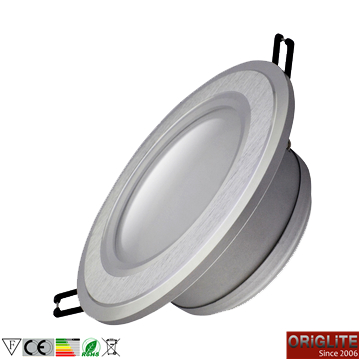

High Power LED Down Lights
Model No. :OL-DL-HP-011,012,013,014,015,016,017
Rated Power :
Input Voltage :
Luminous Flux :
CRI :
Sizes :
Introduction&Application : - Whether static recessed down lights in different sizes and colour temperatures, Origlite offer the right lighting solution for every application - With our down lights goods and items in the spotlight. The used materials, die-cast aluminium body, LED branded chip (BridgeLUX, SamSung), and colours fit perfectly into your concept. - Anti-glare optical design. To create comfortable and inviting illuminating environment - Convex PMMA lens makes lighting condensed. - The LED technology we use is also characterized by even distribution of lighting. No dark area - Elegant light body, electroplated and polished to a deep, high polish, smooth to the touch and significantly more lustrous - Electroplated light body of white matte colour, silver colour, grey colour for option - 3W-23W, varied power supply, sizes for option

Features & Parameters

Light & Illuminance

Structural & Packaging

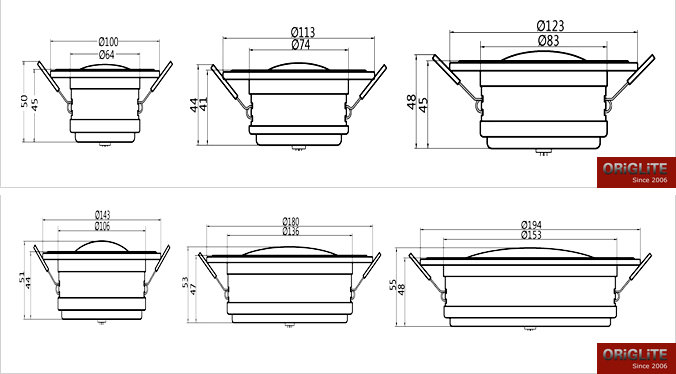

Installation Drawing

Item No.		OL-DL-HP-011	OL-DL-HP-012	OL-DL-HP-013	OL-DL-HP-014	OL-DL-HP-015	OL-DL-HP-016	OL-DL-HP-017
Life Span		35000 H	35000 H	35000 H	35000 H	35000 H	35000 H	2 Years
Optical	LED Chip	BridgeLUX	BridgeLUX	BridgeLUX	BridgeLUX	BridgeLUX	BridgeLUX	BridgeLUX
	LED Type	3PC*1W	5PC*1W	7PC*1W	9PC*1W	12PC*1W	15PC*1W	21PC*1W
	LM	240	400	560	720	960	1200	1680
	LM/W	80	80	80	80	80	80	80
	LUX
	Beam Angle	15, 30,45,60	15, 30,45,60	15, 30,45,60	15, 30,45,60	15, 30,45,60	15, 30,45,60	15, 30,45,60
	Dimmable	No	No	No	No	No	No	No
Electrical	Input V	AC85-265V	AC85-265V	AC85-265V	AC85-265V	AC85-265V	AC85-265V	AC85-265V
	Output W	3.5	6.2	8.2	10.5	14	17.5	23
	Power Factor	0.92	0.92	0.92	0.92	0.92	0.92	0.92
	Driver	isolated, constant current	isolated, constant current	isolated, constant current	isolated, constant current	isolated, constant current	isolated, constant current	isolated, constant current
Colour	Colour	White	White	White	White	White	White	White
	CCT(K)	2700-3200 4000-4500 5500-6500	2700-3200 4000-4500 5500-6500	2700-3200 4000-4500 5500-6500	2700-3200 4000-4500 5500-6500	2700-3200 4000-4500 5500-6500	2700-3200 4000-4500 5500-6500	2700-3200 4000-4500 5500-6500
	Ra	75	75	75	75	75	75	75
Structural	Working Temperature	-20 ℃~ +50℃	-20 ℃~ +50℃	-20 ℃~ +50℃	-20 ℃~ +50℃	-20 ℃~ +50℃	-20 ℃~ +50℃	-20 ℃~ +50℃
	Housing Materials	PMMA Cover Aluminium	PMMA Cover Aluminium	PMMA Cover Aluminium	PMMA Cover Aluminium	PMMA Cover Aluminium	PMMA Cover Aluminium	PMMA Cover Aluminium
	Sizes (mm)	Ø100*45mm	Ø113*41mm	Ø123*45mm	Ø143*44mm	Ø180*47mm	Ø194*48mm	Ø230*56mm
	NW(G)	23.5	19.5	23	17	17.5	18.5	11
	GW(G)	25	21	24	18	18.5	19.5	12
	Packaging	100PCS/CTN 570570285	64PCS/CTN 500500265	60PCS/CTN 670410265	40PCS/CTN 770320285	32PCS/CTN 780400285	24PCS 650420305	19PCS 35524590
