Product >> Architectural Office Light >>90-130LM/W LED Panel Light >>

Large image

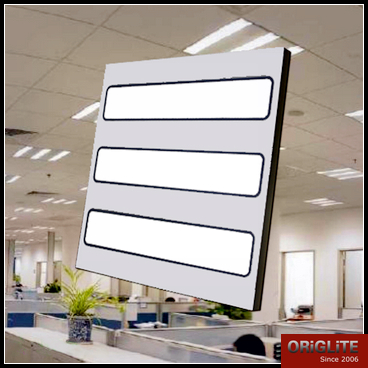

Exclusive Design LED Grille Panel Light
Model No. :OL-GPL-01,02,03,04
Rated Power :
Input Voltage :
Luminous Flux :
CRI :
Sizes :

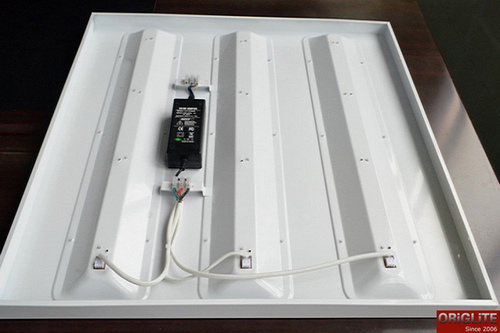

Introduction&Application : - An innovative combination of fluorescent grill light and LED panel light - Excellent cost performance. Much more competitive price than the above two - High luminous flux, 1300-3000LM, just the same as that of the above two lights - LED chip on electrical circuit board for good performance of heat emission - All-in-one-shaped light body, better for heat dissipation - Frosted PMMA lighting diffusion plate, anti-glare design. Even distribution of light - External constant current driver fixed, no shaking - Exclusive, smart, superb design of panel - 20W, 32W, 36W, 56W for option

Features & Parameters

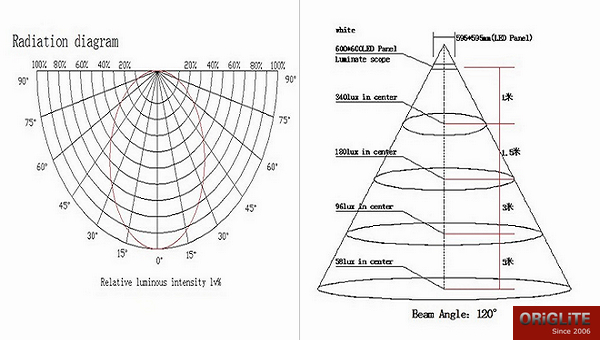

Light & Illuminance

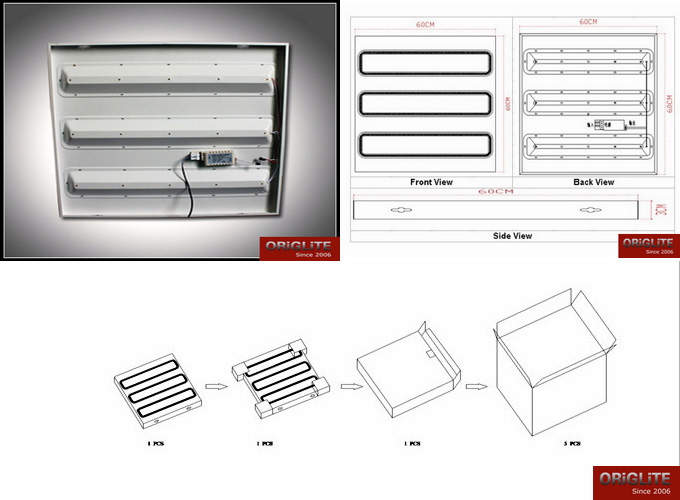

Structural & Packaging

Installation Drawing

Item No.		OL-GPL-01	OL-GPL-02	OL-GPL-03	OL-GPL-04
Life Span(Hours)		35000	35000	35000	35000
Optical	LED Chip	SMD LED 5630	SMD LED 5630	SMD LED 5630	SMD LED 5630
	LED Qnty
	LM	2350	2270	3528	1260
	LM/W	63	63	63	63
	LUX
	Beam Angle	120 Degrees	120 Degrees	120 Degrees	120 Degrees
	Dimming	No	No	No	No
Electrical	Input V	AC 85~264V	AC 85~264V	AC 85~264V	AC 85~264V
	Output W	37	36	56	20
	Power Factor	0.92	0.92	0.92	0.92
Colour	Colour	white	white	white	white
	CCT(K)	2700-3200 4000-4500 5500-6500	2700-3200 4000-4500 5500-6500	2700-3200 4000-4500 5500-6500	2700-3200 4000-4500 5500-6500
	Ra	75	75	75	75
Structural	Working Temperature	-20 ℃~ +50℃	-20 ℃~ +50℃	-20 ℃~ +50℃	-20 ℃~ +50℃
	Housing Materials	Aluminium, PMMA	Aluminium, PMMA	Aluminium, PMMA	Aluminium, PMMA
	Sizes (mm)	60060014	300120014	600120014	30060014
	NW(G)	1100	1250	2250	600
	GW(G)
	Packaging
